Instrumentation
From pressure and temperature to flow and level — we supply smart instrumentation from leading manufacturers for every process measurement application across the Gulf Coast.
Pressure Transmitters
Smart and conventional pressure transmitters for gauge, absolute, and differential pressure measurement. HART, Foundation Fieldbus, and Profibus protocols available.
- —Range: 0–0.5 inH₂O to 0–10,000 PSI
- —Output: 4–20mA, HART, FF, Profibus
- —Accuracy: ±0.04% to ±0.1%
- —Approvals: FM, CSA, ATEX, IECEx
Differential Pressure Transmitters
DP transmitters for flow, level, and pressure measurement across orifice plates, venturis, and other primary elements. Multivariable models available.
- —Range: 0–0.1 inH₂O to 0–2000 PSI
- —Turndown: up to 200:1
- —Output: 4–20mA HART, FF
- —Diaphragm: SS, Hastelloy, Tantalum

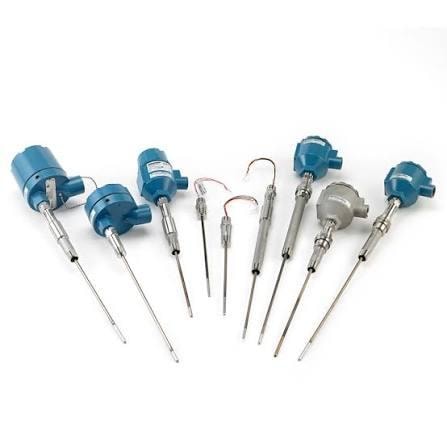

Temperature Transmitters & Sensors
Thermocouples, RTDs, and temperature transmitters for process and ambient temperature measurement. Head-mount and DIN rail transmitters with HART output.
- —Types: Thermocouple (J, K, T, E), RTD (Pt100, Pt1000)
- —Range: –200°C to +1750°C
- —Output: 4–20mA HART, mV
- —Protection: IP65, IP67, Explosion-Proof
Flow Meters
Vortex, magnetic, Coriolis, ultrasonic, and turbine flow meters for liquid, gas, and steam measurement. Insertion and inline designs for all pipe sizes.
- —Types: Vortex, Magnetic, Coriolis, Ultrasonic
- —Pipe Sizes: ½" – 120"
- —Output: 4–20mA, Pulse, HART, FF
- —Fluids: Liquids, Gas, Steam, Slurry

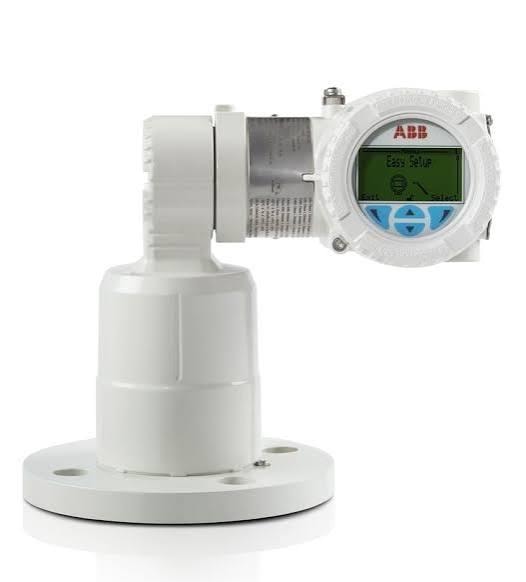

Level Instruments
Radar, guided wave radar, ultrasonic, displacer, and float-type level transmitters for tanks, vessels, and process equipment. Continuous and point level detection.
- —Types: Radar, GWR, Ultrasonic, Displacer
- —Range: 0–100 ft
- —Output: 4–20mA HART, FF, Profibus
- —Approvals: FM, ATEX, IECEx

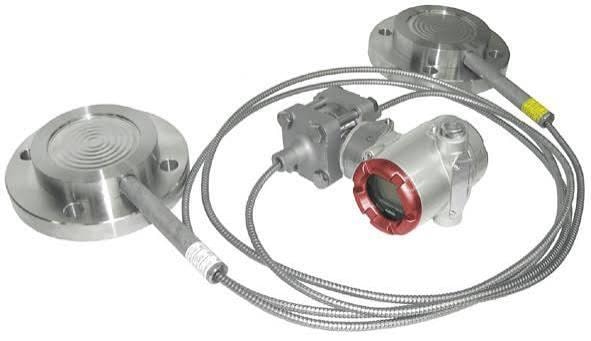

Remote Seals & Diaphragm Seals
Capillary-connected diaphragm seals for isolating transmitters from corrosive, viscous, or high-temperature process fluids. Flush, threaded, and flanged connections.
- —Fill Fluids: Silicone, Glycerin, Halocarbon
- —Connections: Flanged, Threaded, Flush
- —Materials: SS 316L, Hastelloy, Tantalum
- —Capillary: SS, Monel armored
Don't see what you need? Chances are we have it!
We source products beyond what's listed. Contact us with your specs.
